Flared U-Rings

Currently there are 5 different styles of Flared U-Ring construction

Type 11X - Hardest, Heavy weight fabric throughout

Type 11 - Hard, Fabric throughout (Heel & Lips)

Type 13 - Medium Hardness, Fabric throughout, less fabric density than type 11

Type HB - Soft, Fabric Heel with 80-85 Durometer Homogeneous Lips

Type HT - EPDM & Kevlar (NOTE: This style requires an extended lead time due to material availability.)

LaFavorite Industries Inc. : Flared U-Packing

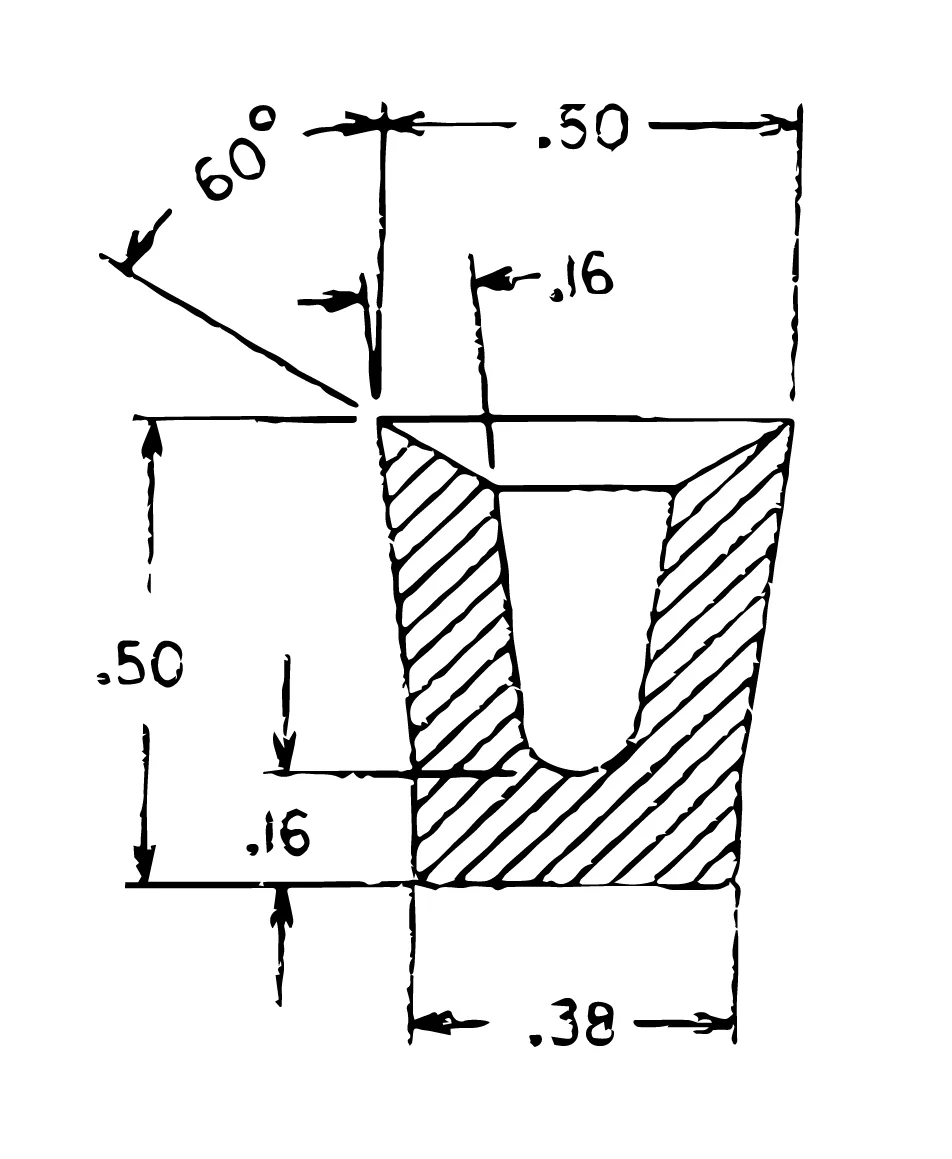

Standard U-Rings

Standard Upacking

Currently there are 2 different styles of Standard U-Ring construction

Type 2 - Softer of the two types. Constructed of a rubber core and a medium weight fabric cover

Type 5 - Harder construction style. Medium weight fabric throughout.

VEE PACKING

Standard Construction - Medium hardness, Fabric throughout.

Rock Hard Construction - Harder construction, heavier weight fabric. Construction styles can include Standard construction center rings with Rock Hard adapters or Rock Hard construction used throughout.

Note: All Vee Packing sets can be Moly Coated with a graphite based coating that facilitates ease of installation.

  VEE PACKING

VEE PACKING

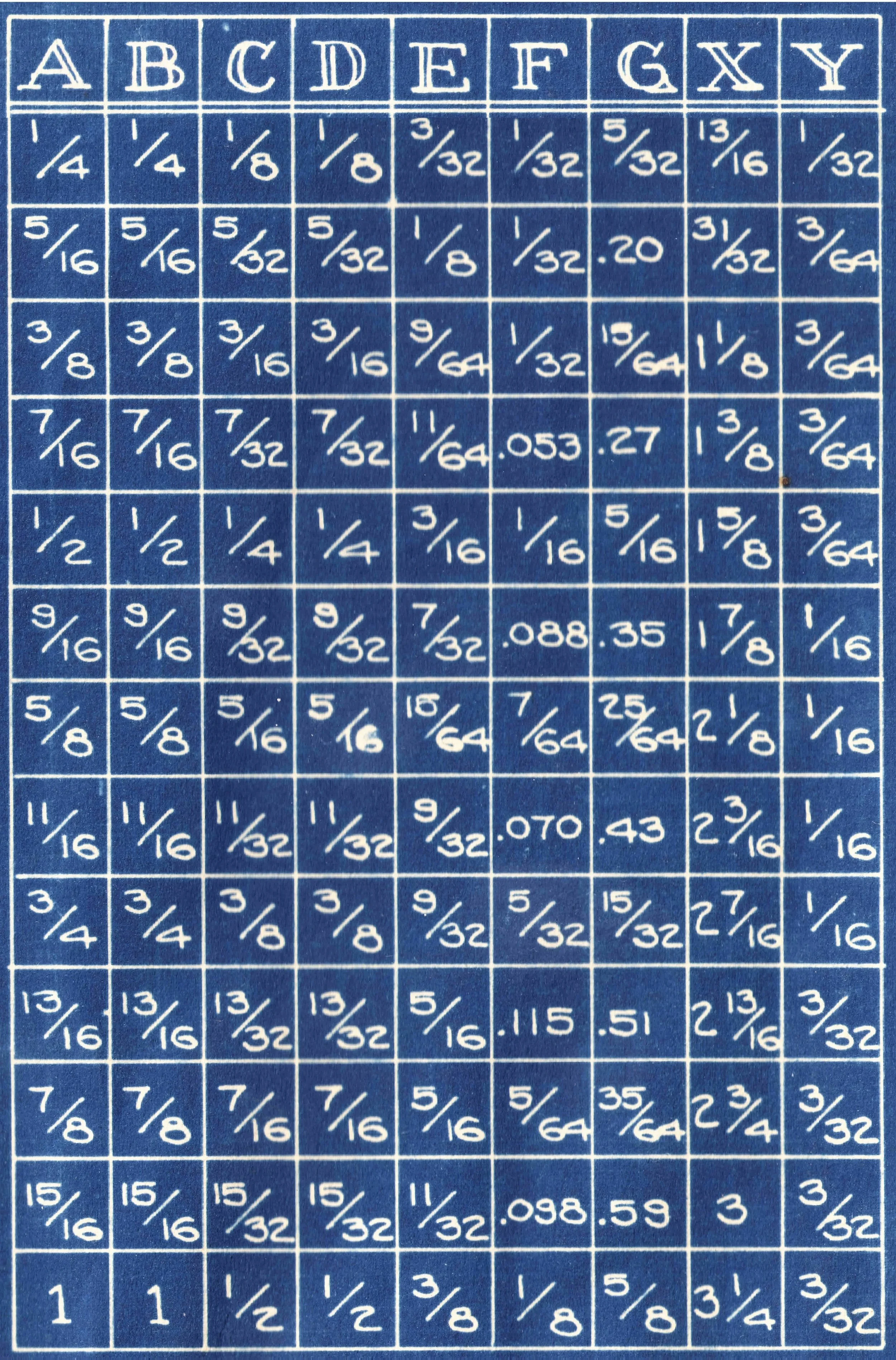

  Vee Packing Dimensions

Vee Packing Dimensions

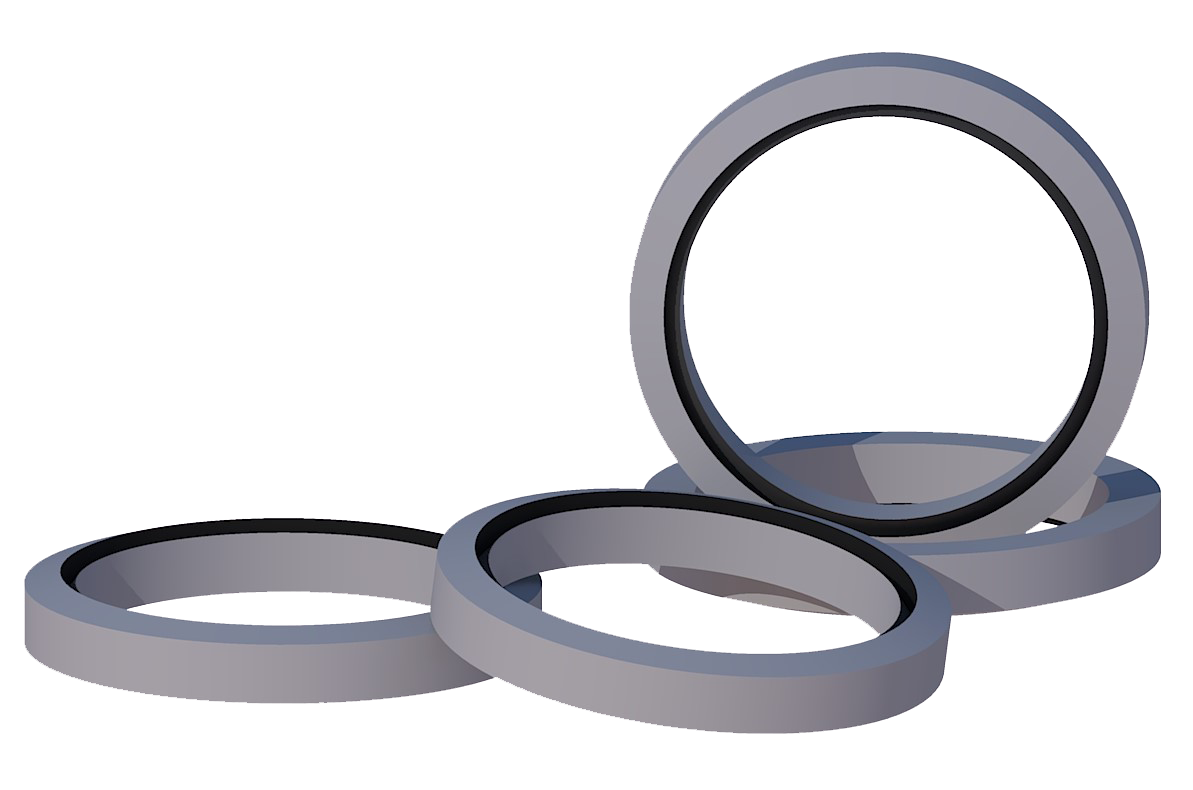

Marvel and Conical Washers

Standard construction material for Marvel Washers is EPDM.

Additional construction materials are available upon request.

 LaFavorite Industries Inc. : Marvel Washer

LaFavorite Industries Inc. : Marvel Washer

 LaFavorite Industries Inc. : Conical Washer

LaFavorite Industries Inc. : Conical Washer
